Jack Base Scaffolding for Malaysian Sites
A jack base carries the standard at ground level, while a U-head supports formwork or beams above. Both adjust height with a threaded stem and nut.
Base jacks and U-head jacks
| Item | Stem | Stem length | Plate |
|---|---|---|---|

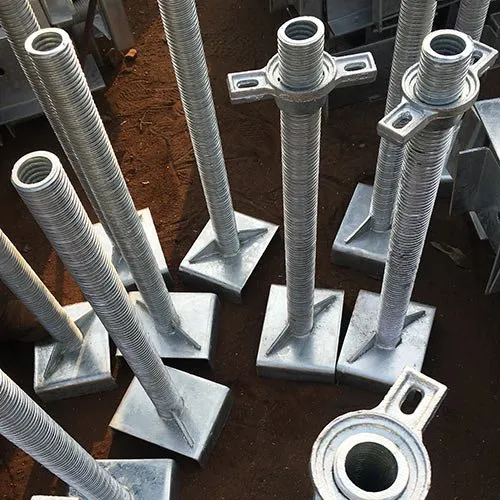

| Base jack | Ø38 or Ø48 mm | 500 / 600 mm | Square base plate |
| U-head jack | Ø38 or Ø48 mm | 500 / 600 mm | U-head, reinforced version available |

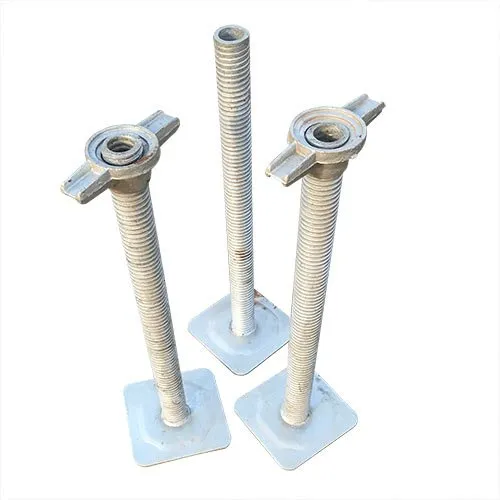

| Jack nut | To match stem | - | Cast, two handles |
Nominal dimensions. Plate size and stem type are confirmed on the drawing.
Jack base under the standard, U-head on top
The base jack sits under the vertical standard. Its threaded stem and nut let you level the scaffold on uneven ground before the first lift goes up. You adjust it once at setup, then leave it to carry the load. Some buyers call it a scaffolding base jack.
The U-head jack works at the top of the standard. Its U-shaped head holds beams or formwork, and the same threaded adjustment lets you fine-tune the height after the deck is in place. Both use the same stem and nut system, so your crew only learns one adjustment method.
What to tell us when you ask for a quote
Stem diameter
Common options are 38 mm or 48 mm. Tell us which one matches your standards and load plan.
Stem length
500 mm and 600 mm are standard. We can quote other lengths if your site needs more adjustment range.
Quantity
How many base jacks and U-head jacks do you need? We keep stock in our Malaysia warehouse for faster delivery.
Get a local quote
Send your list or your drawings. The quotation comes from our Malaysia team.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
