Modular Scaffolding Malaysia: Ringlock System from VANHN
If you need modular scaffolding in Malaysia, the ringlock system is the practical choice. Rosette joints and hammer-only erection speed up your crew and reduce loose parts on site.
Ringlock modular scaffold system for Malaysian sites

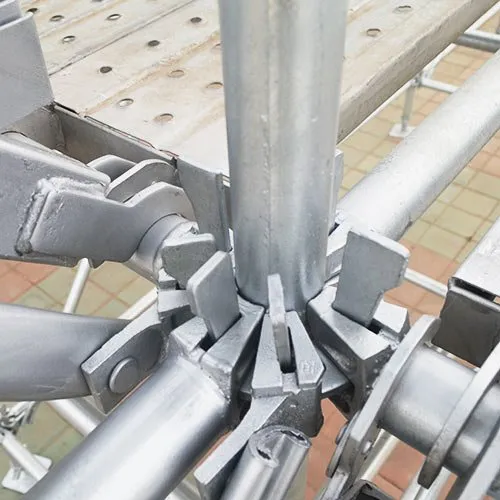

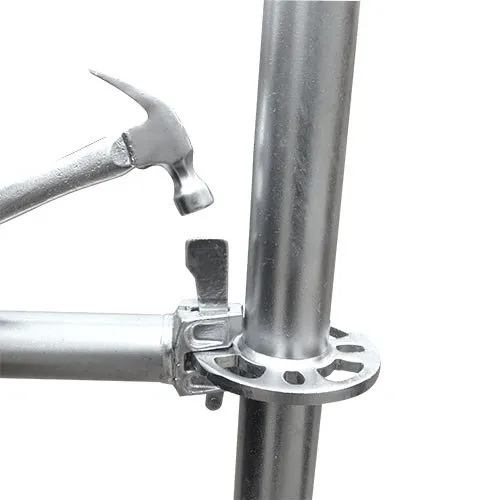

Modular scaffolding in Malaysia is built around the ringlock system. Each standard has a rosette with 8 holes every 500 mm. You connect ledgers and braces with a wedge pin, no bolts, hammer only. This makes erection and dismantling faster than traditional tube and fitting methods.
The modular scaffold system uses Q355 steel for standards and Q235 for ledgers and braces. Hot-dip galvanized finish is standard, giving a service life of 15 years or more. You can choose painted or powder coated options in red, orange, blue or yellow if your project requires it.

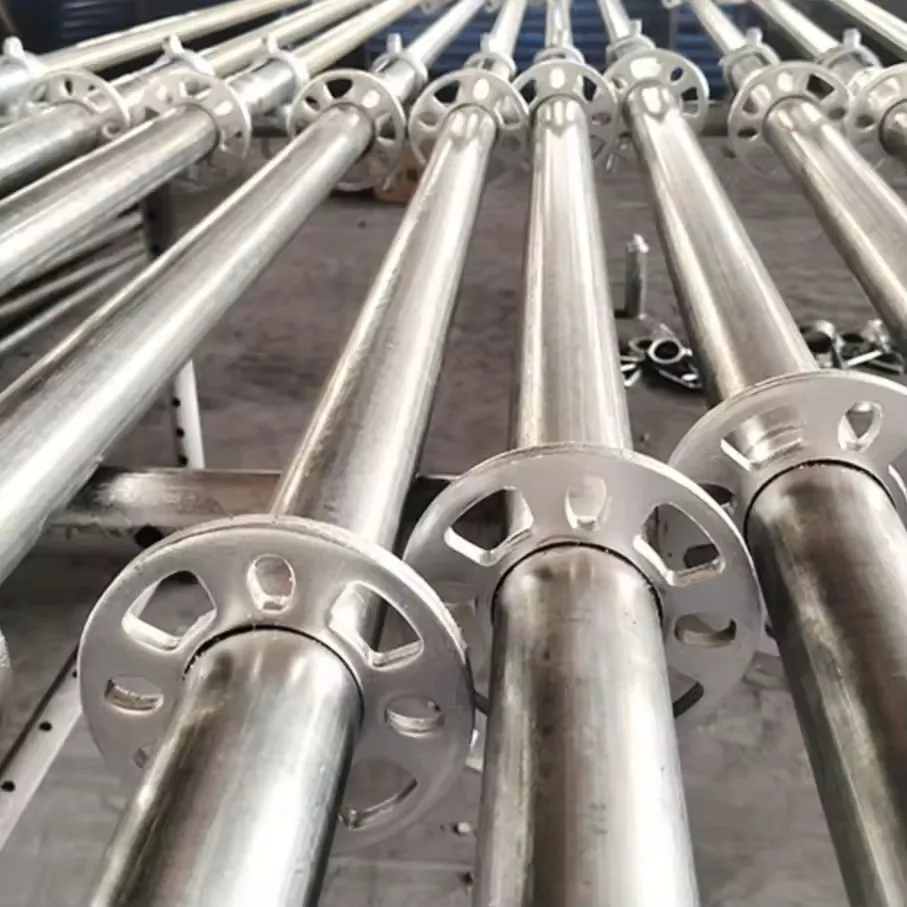

Ringlock standards (verticals)
| Length | Rosettes | Tube | Steel | Finish |
|---|---|---|---|---|
| 0.5 m | 1 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 1.0 m | 2 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 1.5 m | 3 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 2.0 m | 4 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 2.5 m | 5 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 3.0 m | 6 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.
Ringlock ledgers (horizontals)
| Bay length | Tube | Steel | End fitting |
|---|---|---|---|
| 0.3 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 0.6 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 0.9 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.2 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.5 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.8 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 2.1 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 2.4 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 3.0 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.
Modular scaffolding parts available from Malaysia warehouse
Local stock
Our Malaysia warehouse keeps modular scaffolding parts ready for quick dispatch to your site.
Local quotation
Get a price in MYR based on your bill of quantities. No need to wait for an overseas quote.
Local delivery
We arrange delivery from the Malaysia warehouse to your project location, saving you time.
Full system
Standards, ledgers, diagonal braces, steel planks, stairs, base jacks and U-head jacks.
Custom options
Wall thickness 2.75, 3.0 or 3.2 mm, 48 or 60 series, and letter stamping on tube ends.
Get a local quote
Send your list or your drawings. The quotation comes from our Malaysia team.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
